CO2 1.34L Cylinders
CO2 1.34L Cylinders
CO2 1.34L Cylinders
CO2 Aluminum

CO2 1.34L Cylinders

Model: 1.34L

Gas Type
CO2
Capacity
1340ml
Material
Aluminum
Compatible Use
Sparkling water maker with Tr21×4 threaded interface
  • High-capacity endurance: The 900g CO₂ inflation capacity is much higher than that of common small gas cylinders (typically 8g per cylinder), allowing for the continuous production of 120-140 liters of carbonated water (depending on the single inflation volume). This eliminates the need to frequently replace the gas cylinder.
  • Eco-friendly and economical: It can be refilled and reused, significantly reducing long-term costs and plastic/metal waste compared to disposable air bombs.
  • Standard threaded interface (Tr21×4): Compatible with the interfaces of mainstream brands (such as Sodastream, drinkmate etc.). It offers a wide range of options and strong convenience when filling or replacing gas cylinders.
  • High-pressure discharge: With a 900g filling capacity, it can stably generate sufficient pressure to effortlessly create highly refreshing carbonated water with a strong taste, meeting various needs such as daily consumption, cocktail making, and coffee brewing.
View Accessories Get a Free Quote
100% QC Inspection
OEM / ODM Ready
Global Export Support
Specifications

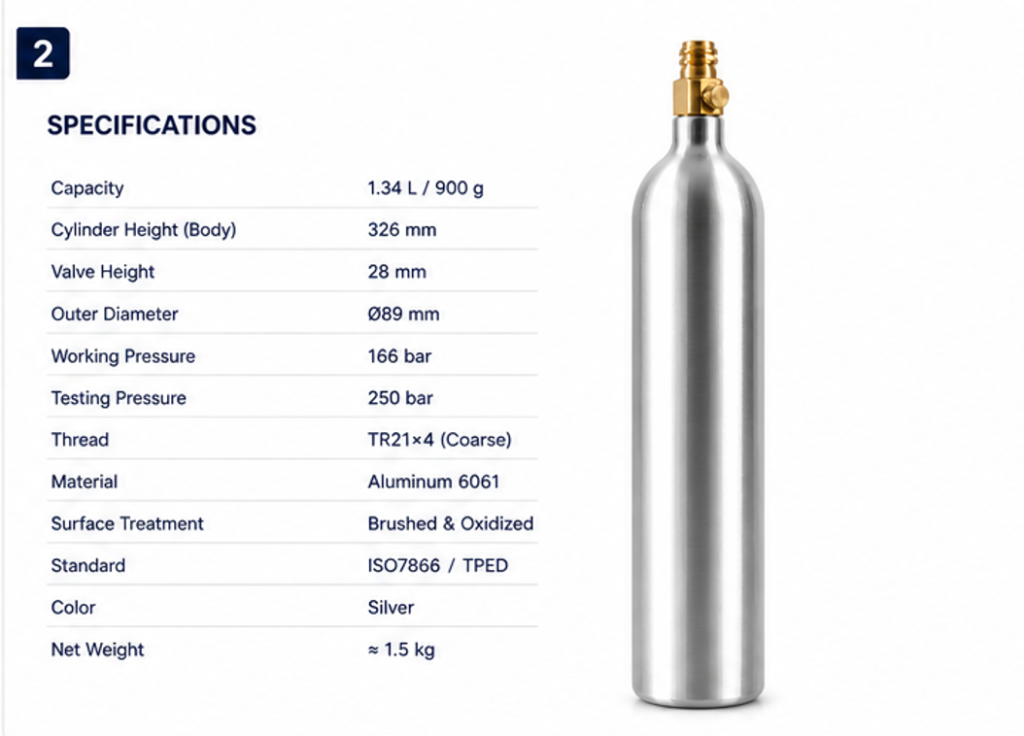

Technical Specifications

Parameter Value
Cylinder type LW89-1.34-250
Material grade 6061A
Design wall thickness 4.8mm

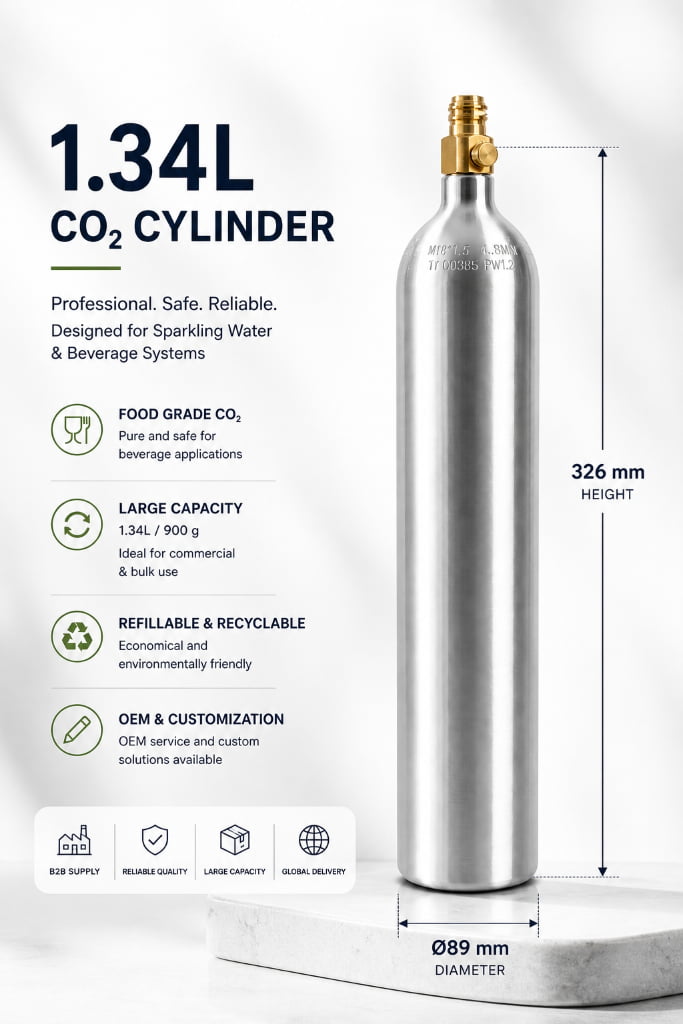

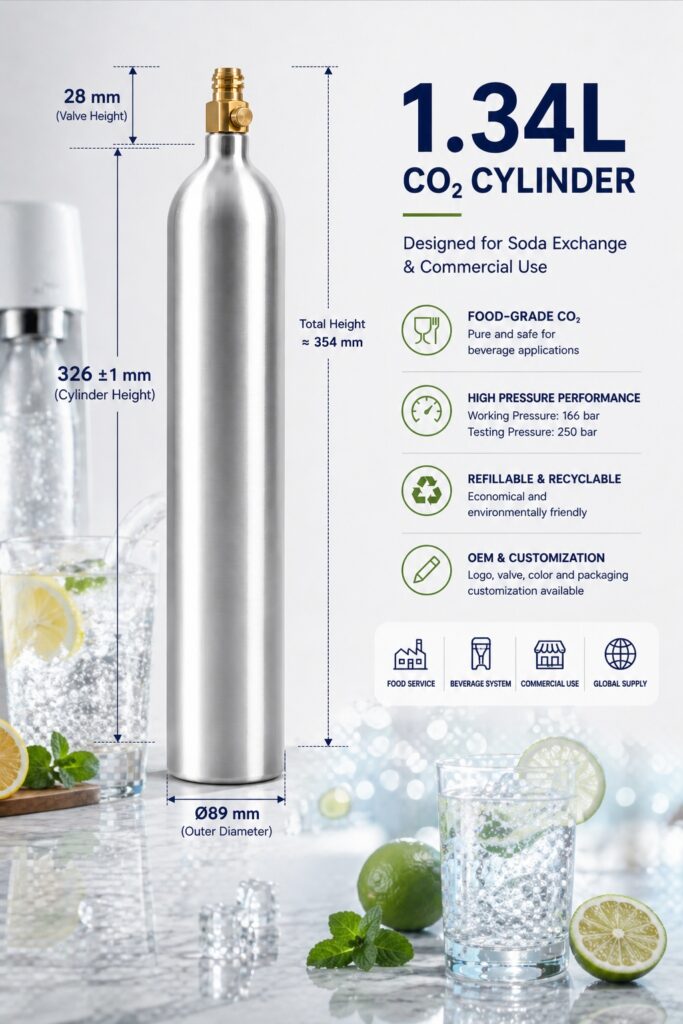

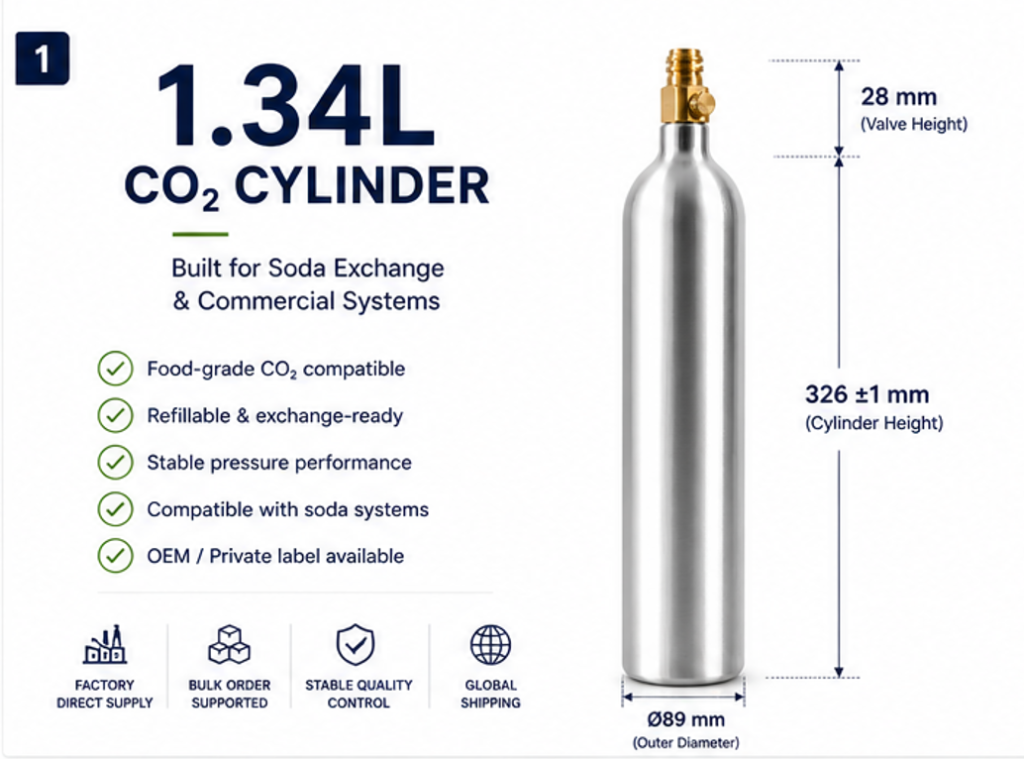

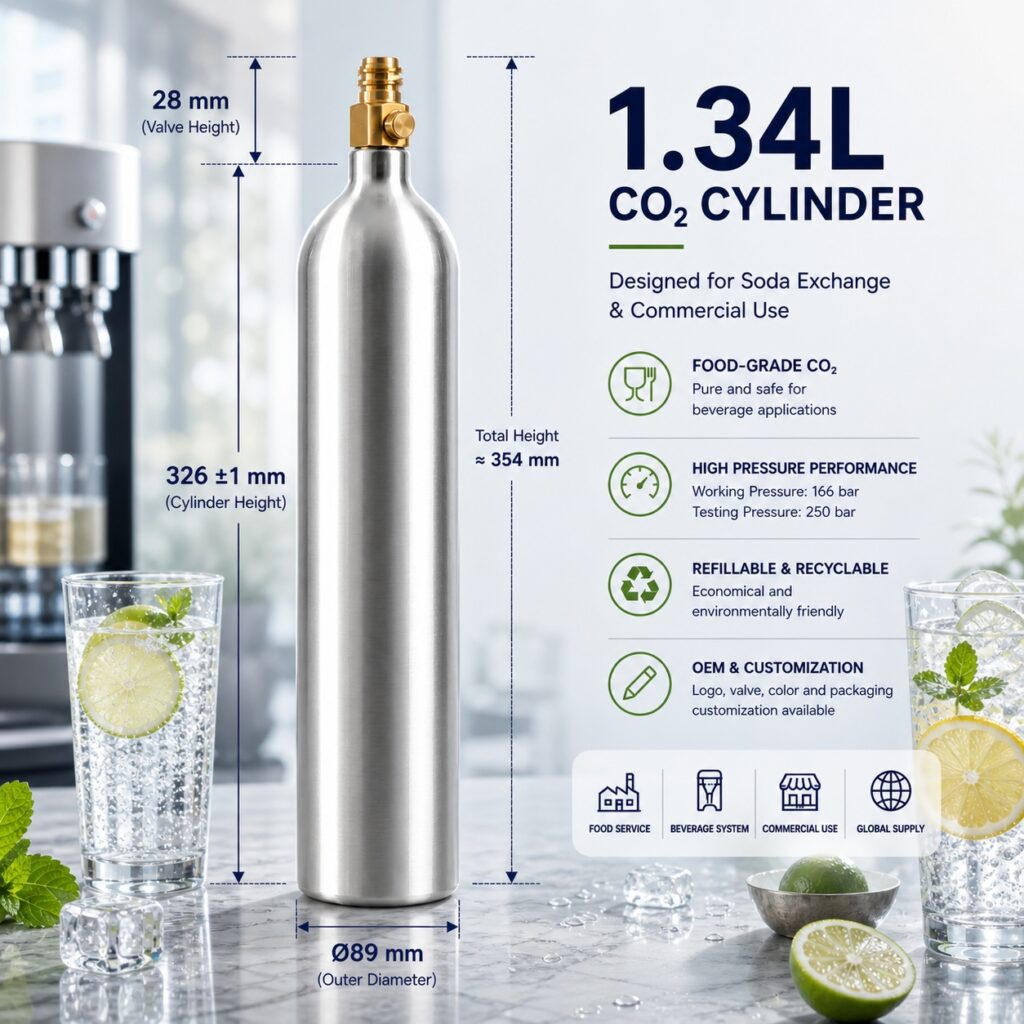

Cylinder height (including valve) 354mm
Cylinder volume 1340ml
Cylinder weight Empty:1460g/Full：2360g
Hydraulic test 250bar
Leakage testing 166.6bar

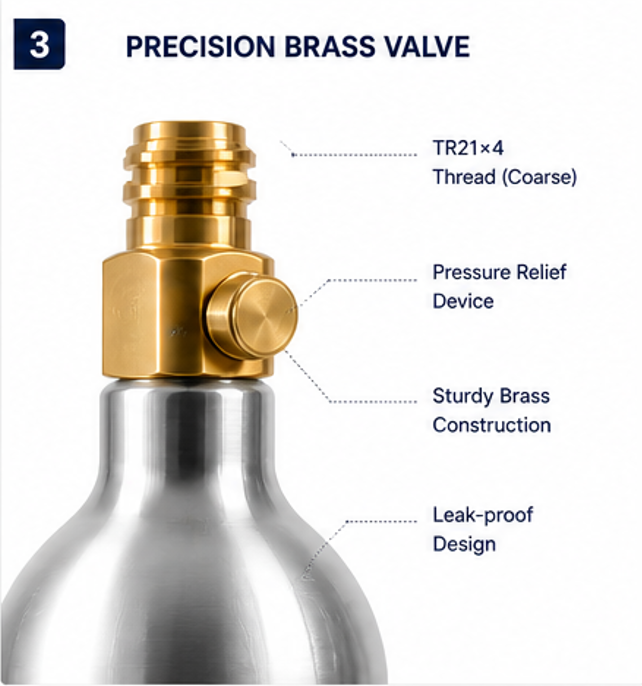

Thread type M18*1.5 and Tr21*4
Valve torque 50~85N.m
Hardness testing HRB≥48
CO2 filling weight 900g
Packaging

Packaging Information

Quantity per Box

1pcs pcs

Box Dimensions

95*95*370mm

Quantity per Box

12pcs pcs

Box Dimensions

375*290*375mm

OEM / ODM

Customization Options

Tailor this product to your brand identity. From Pantone-matched colors to laser-engraved logos -- we support full OEM/ODM customization with free samples before bulk orders.

  • Basic parameters: Volume, height, working pressure, CO2 filling quantity, customized steel stamping for the gas cylinder.
  • Threads: Threads of the gas cylinder, threads of the valve outlet.
  • Appearance and packaging: Grinding and polishing of the gas cylinder surface, heat transfer film with brand logo, packaging quantity and printing.
  • Minimum order quantity (MOQ): Usually quite high, such as 1000 units. The production scale is generally 5000 units or more.
  • Samples: Can inquire about whether samples can be provided for testing, as well as sample costs and delivery time.
  • Price and Payment: The price is usually linked to the purchase quantity. It is clearly stated whether the quoted price includes valves and thermoplastic films, as well as the payment method.
  • Delivery cycle: The time required from sample confirmation to mass production and shipment.
  • Quality assurance and after-sales: The quality guarantee period, scope of coverage, and the handling procedures in case of quality issues.

Standard Customization Capabilities

Pantone Color Match Gas Flavor Laser Engraving Custom Nozzle Sticker Packaging Plastic Accessories Private Label Custom MOQ
